We at Staiger rely on state-of-the-art equipment for all common assembly processes such as soldering, infrared soldering, crimping or insulation displacement. Our injection moulding and hotmelt machines put us in a position to implement even unusual requirements for your applications.

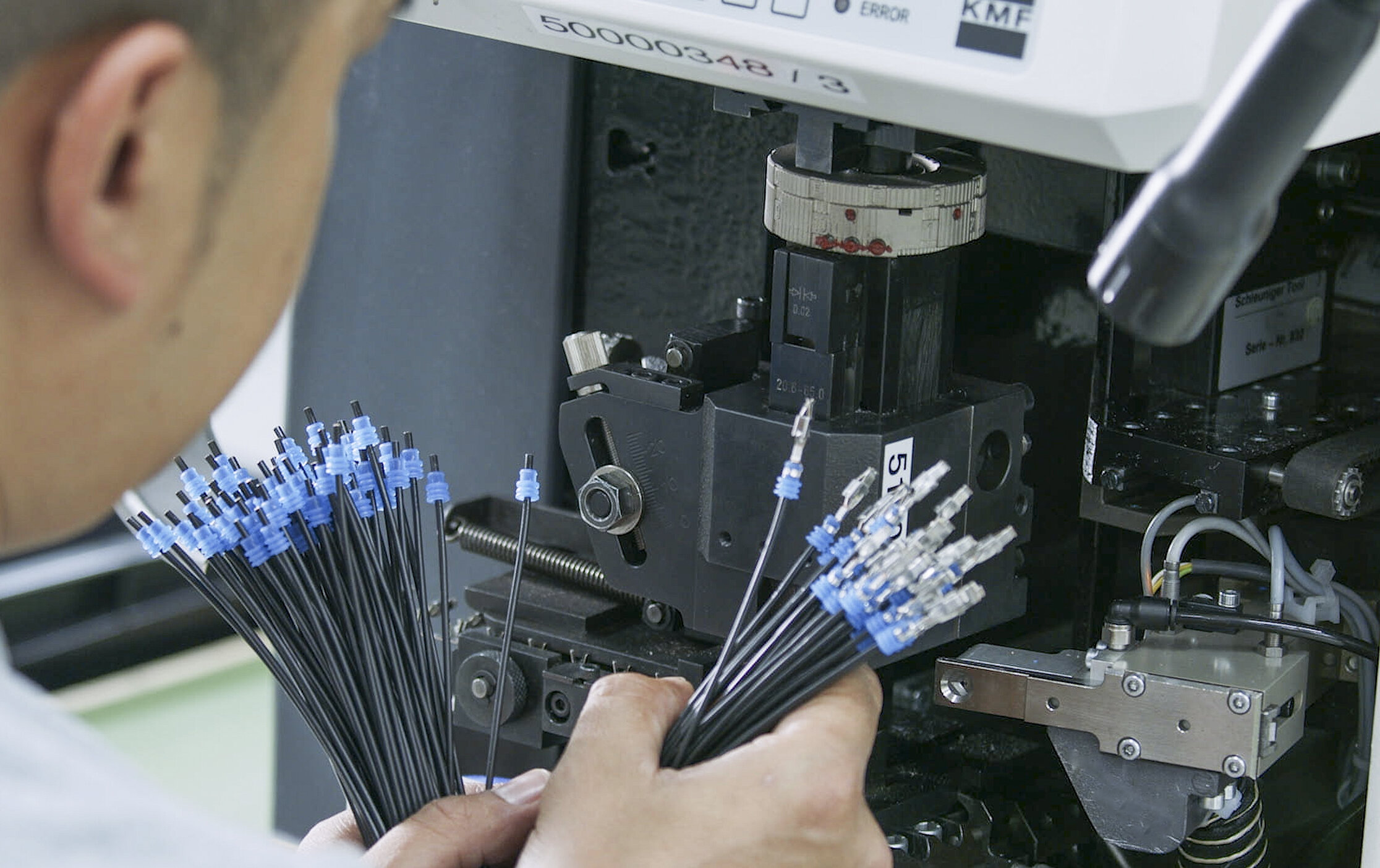

Our qualified employees make the right connections with our versatile machinery, including modern semi- and fully automated crimping machines.

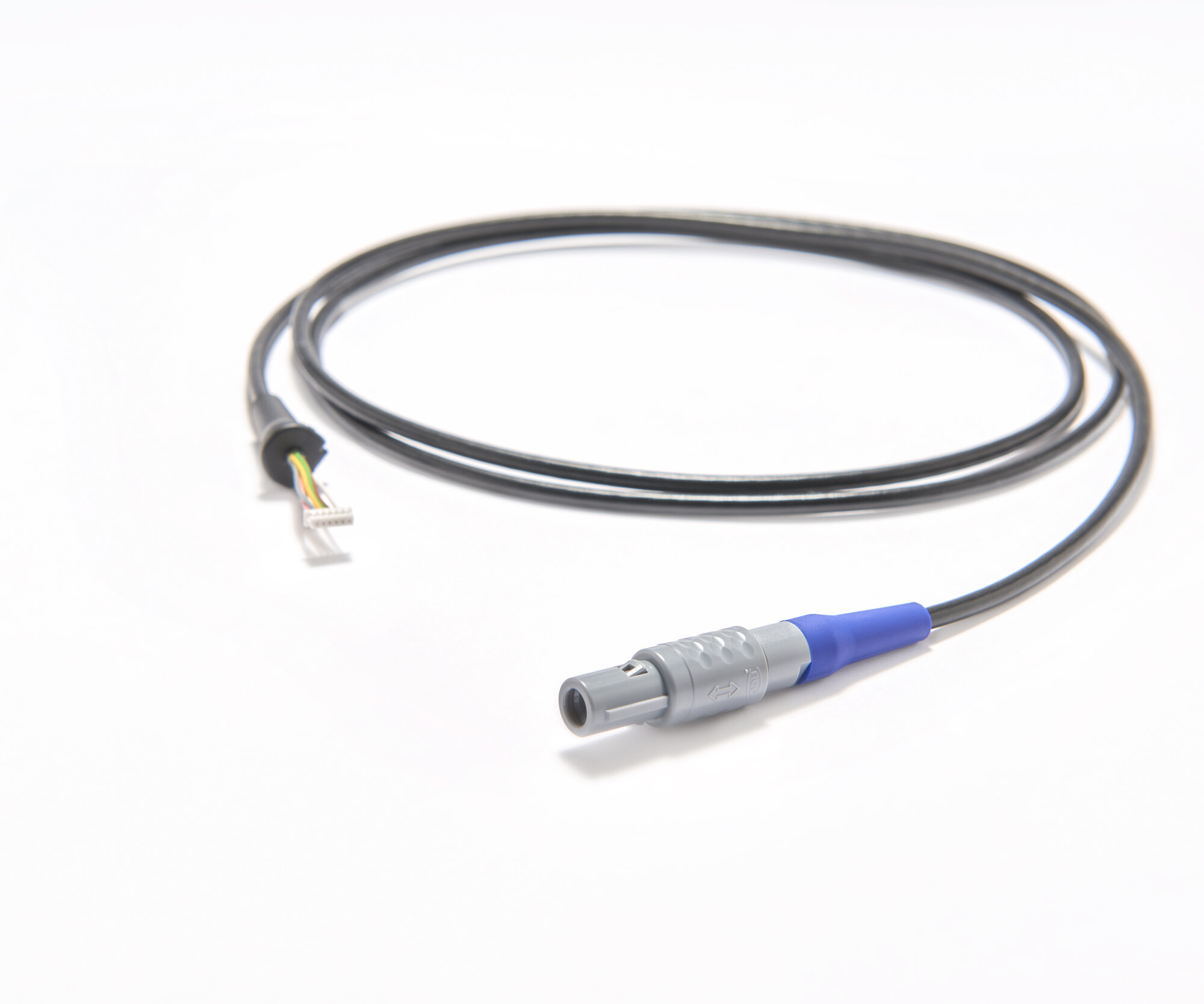

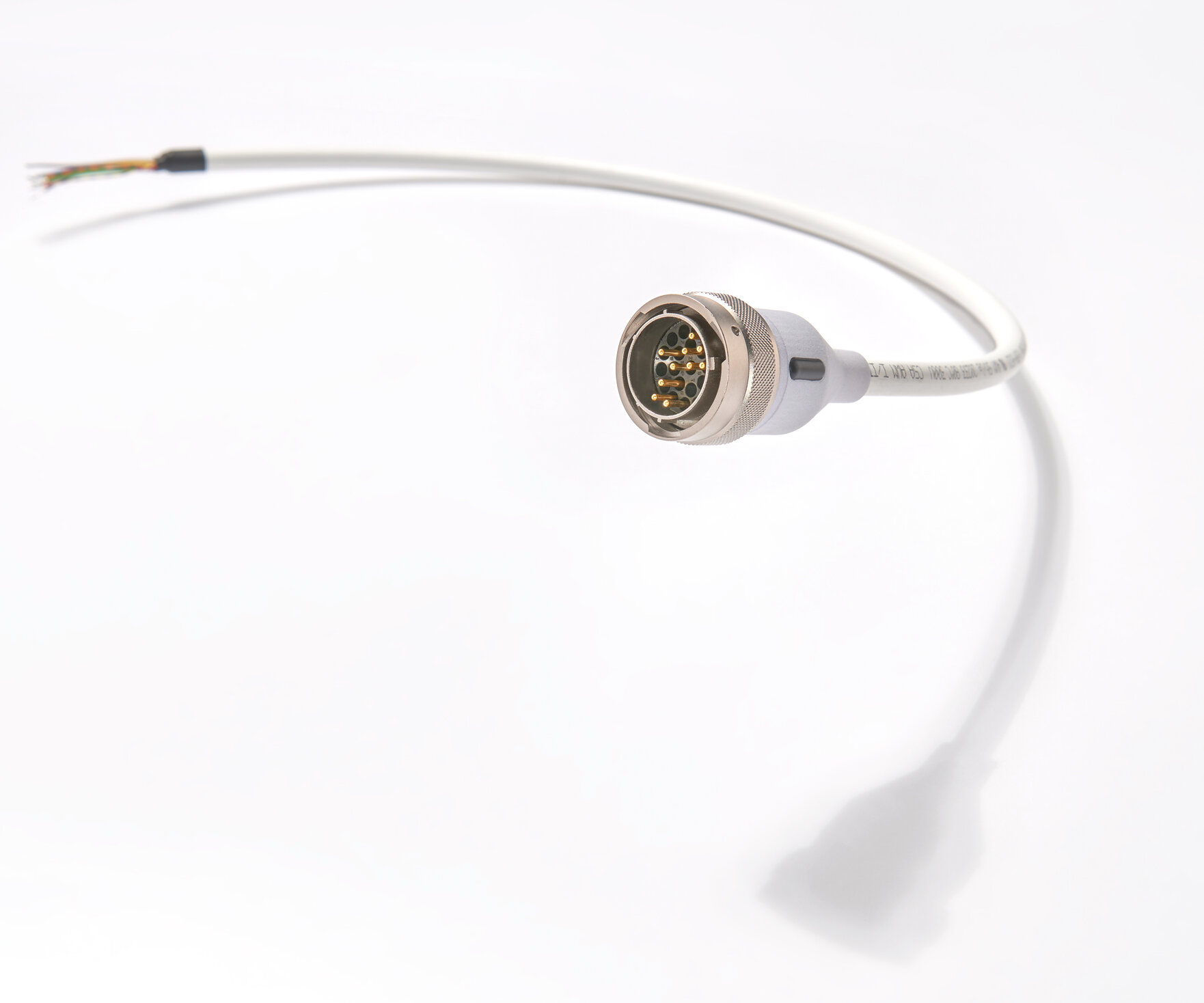

Push-pull connector, 10-pin, with overmoulded coloured anti-kink sleeve and overmoulded strain relief sleeve for device side
Round connector with bayonet lock, assembled with customer-specific 3D-printed enclosure, lined with hotmelt for improved strain relief

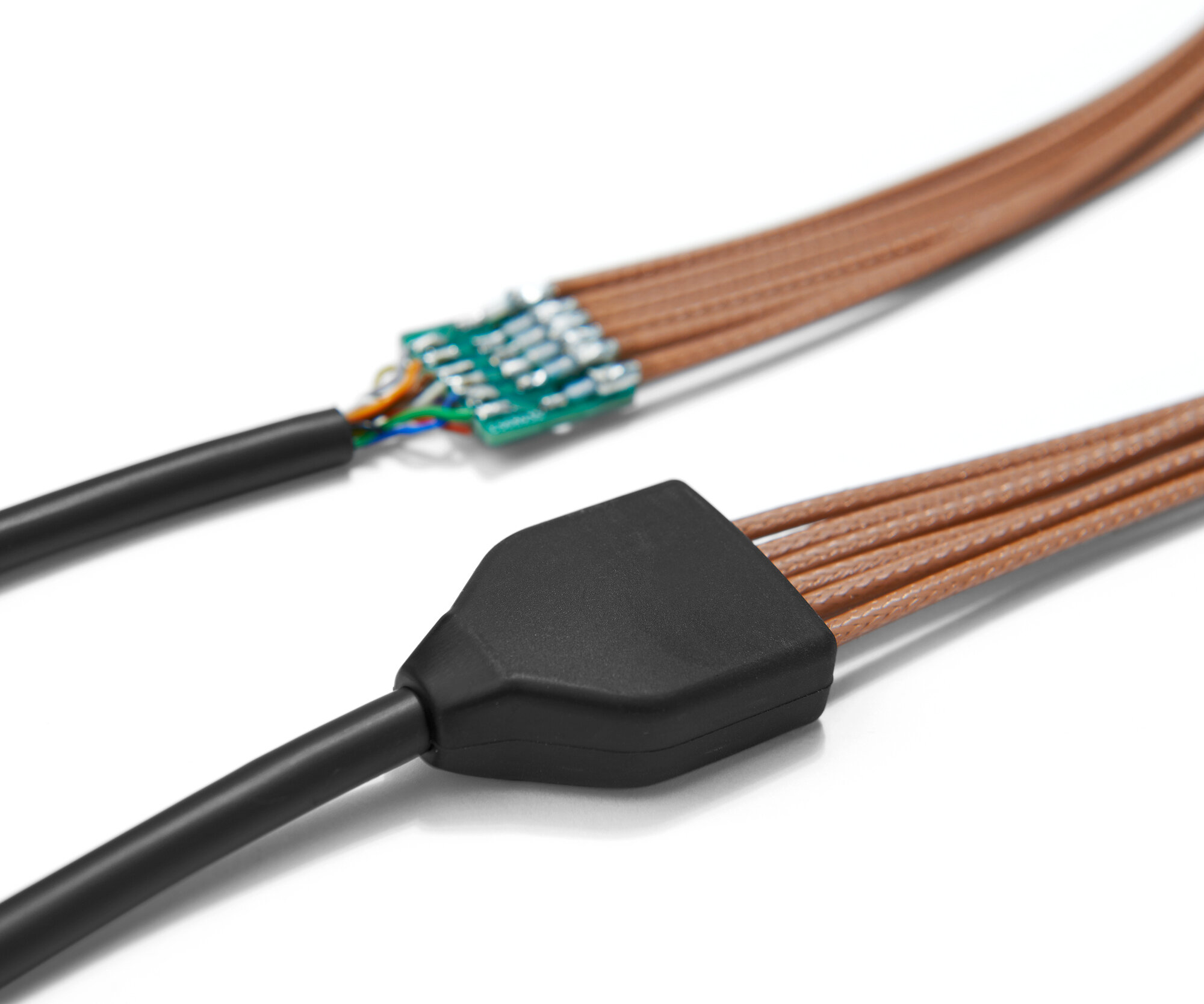

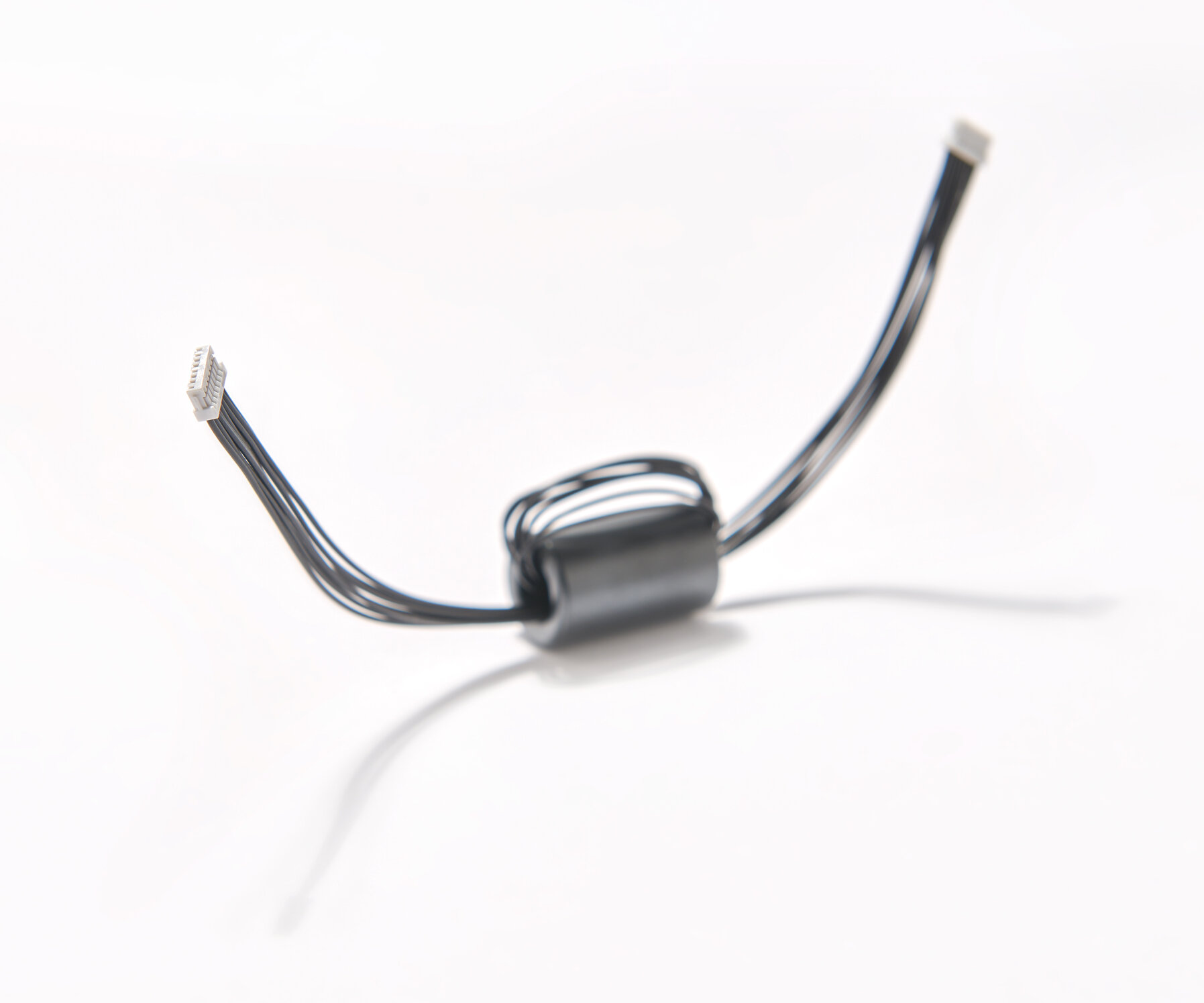

Individual stranded conductors, assembled on circuit board connectors, with integrated ferrite sleeve

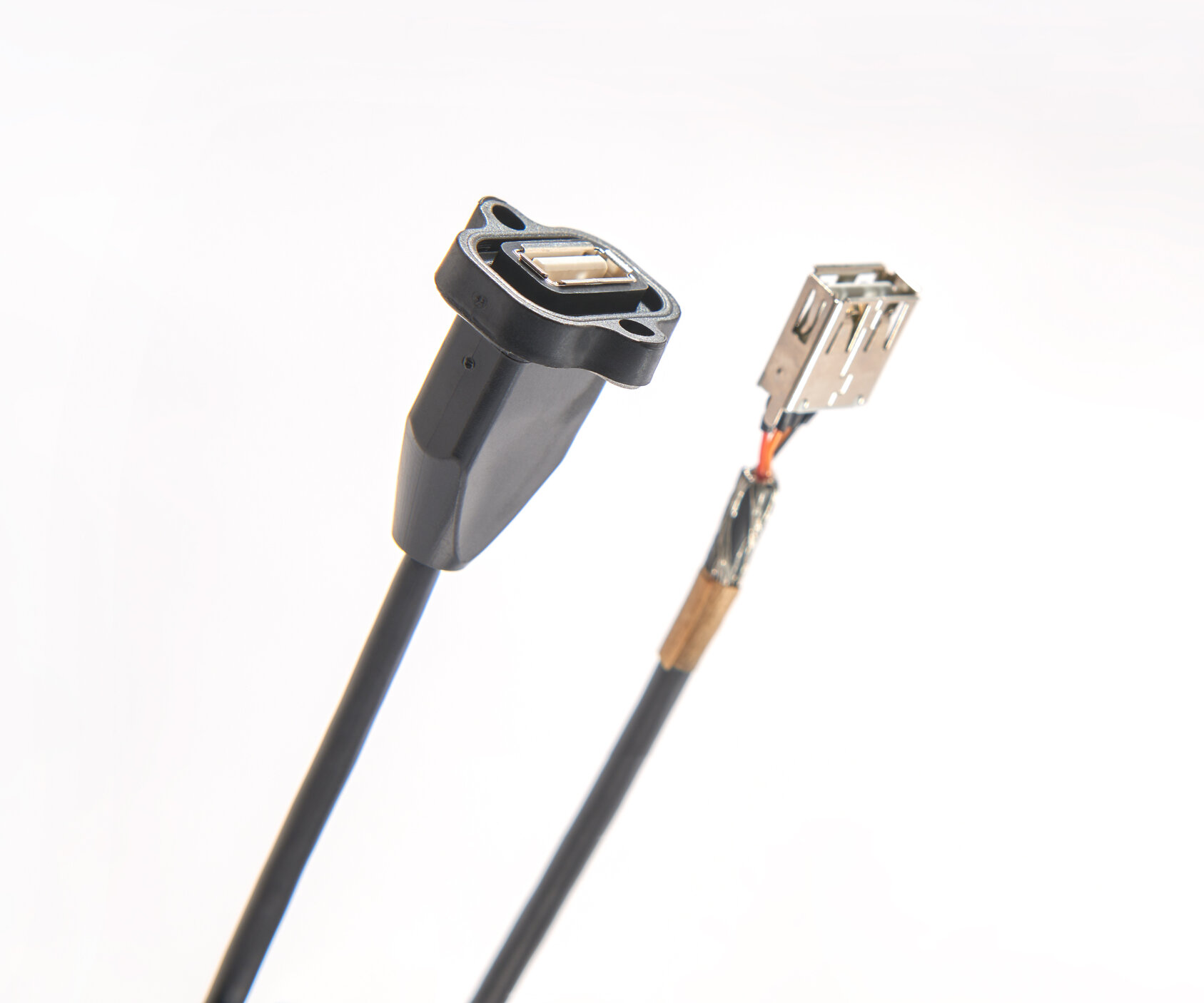

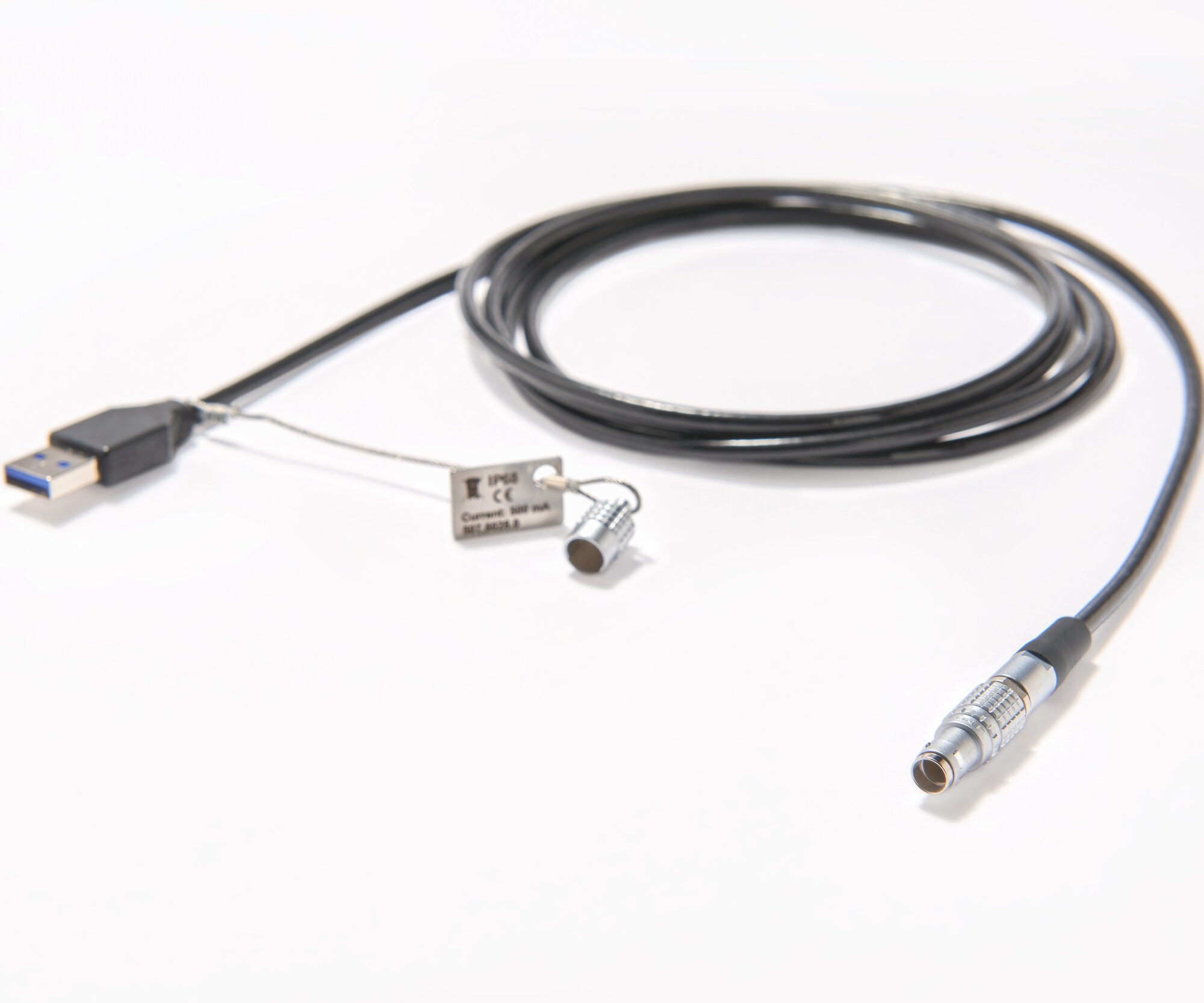

Customer-specific cable with encapsulated USB port and biocompatible outer sheath, waterproof, round connector or push-pull connector with overmoulded anti-kink sleeve, with end cap to facilitate cleaning

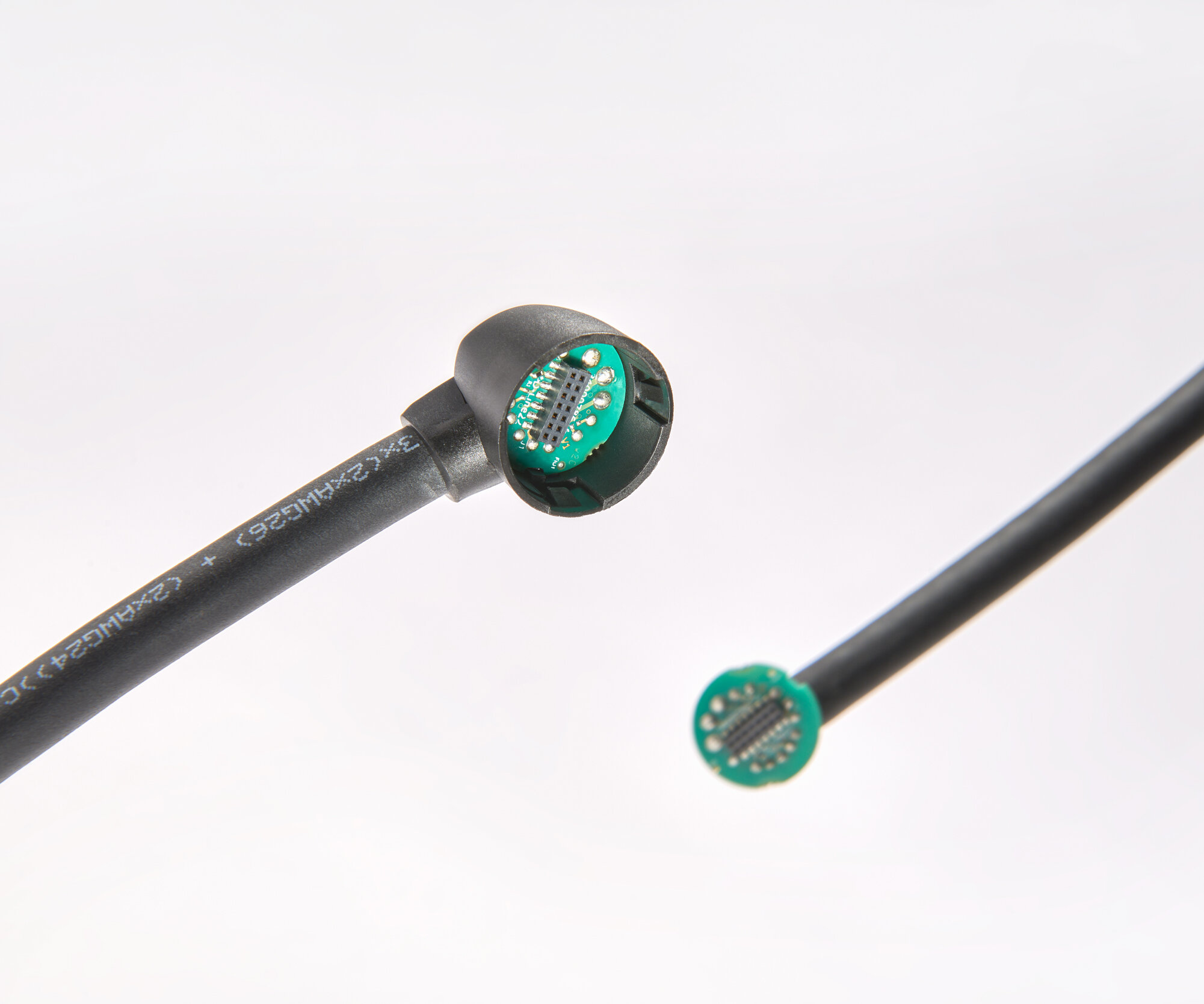

Snap-in connector, fully encapsulated, assembled on medical technology cable with extremely small cross-section (AWG40), customer-specific encapsulation, ready-to-install on the device side with circuit board connector
Customer-specific cable for medical technology, assembled to circular connector with integrated electronics and overmoulded strain relief sleeve for device side – comprehensive solution with the circuit board assembled by Staiger

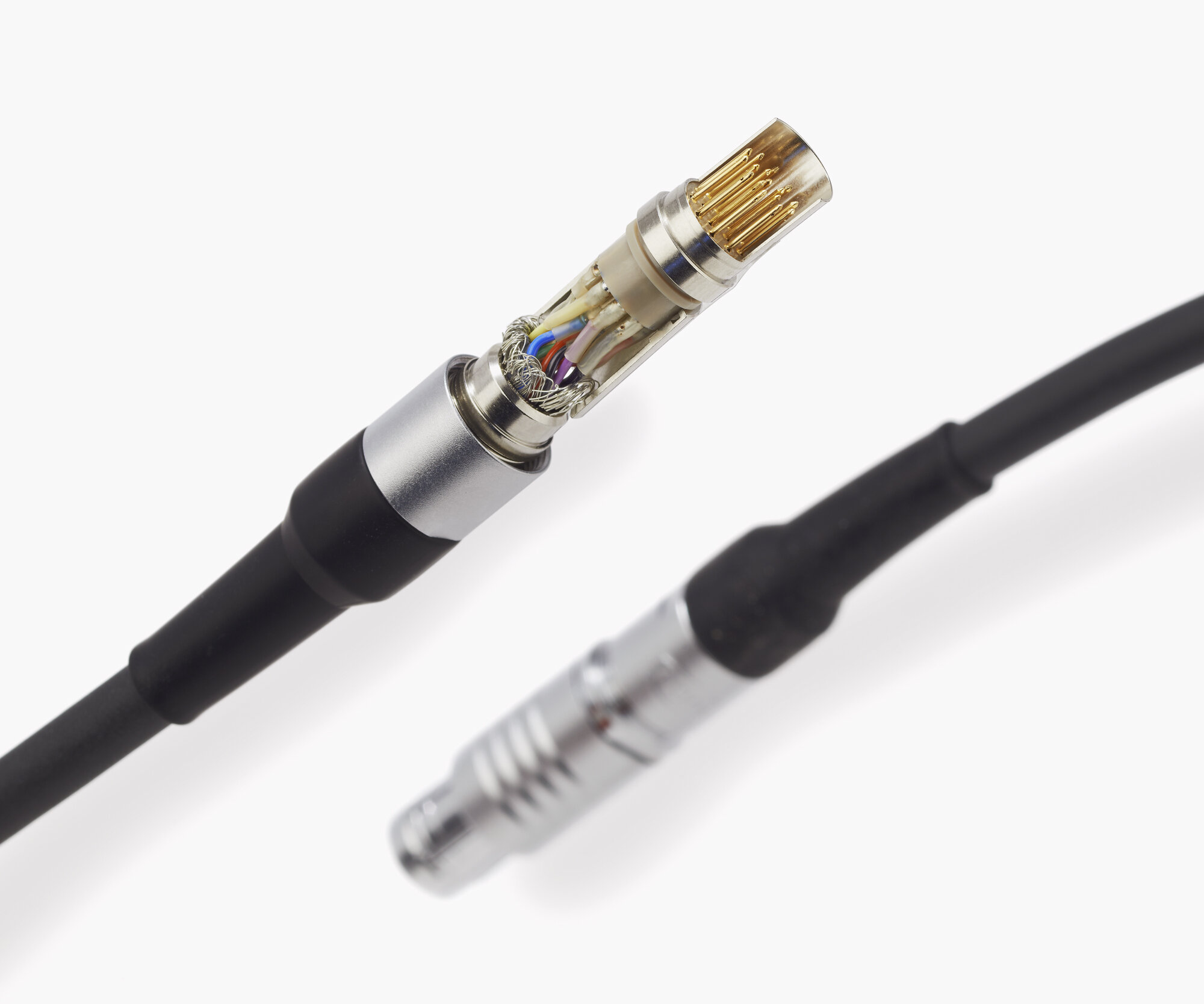

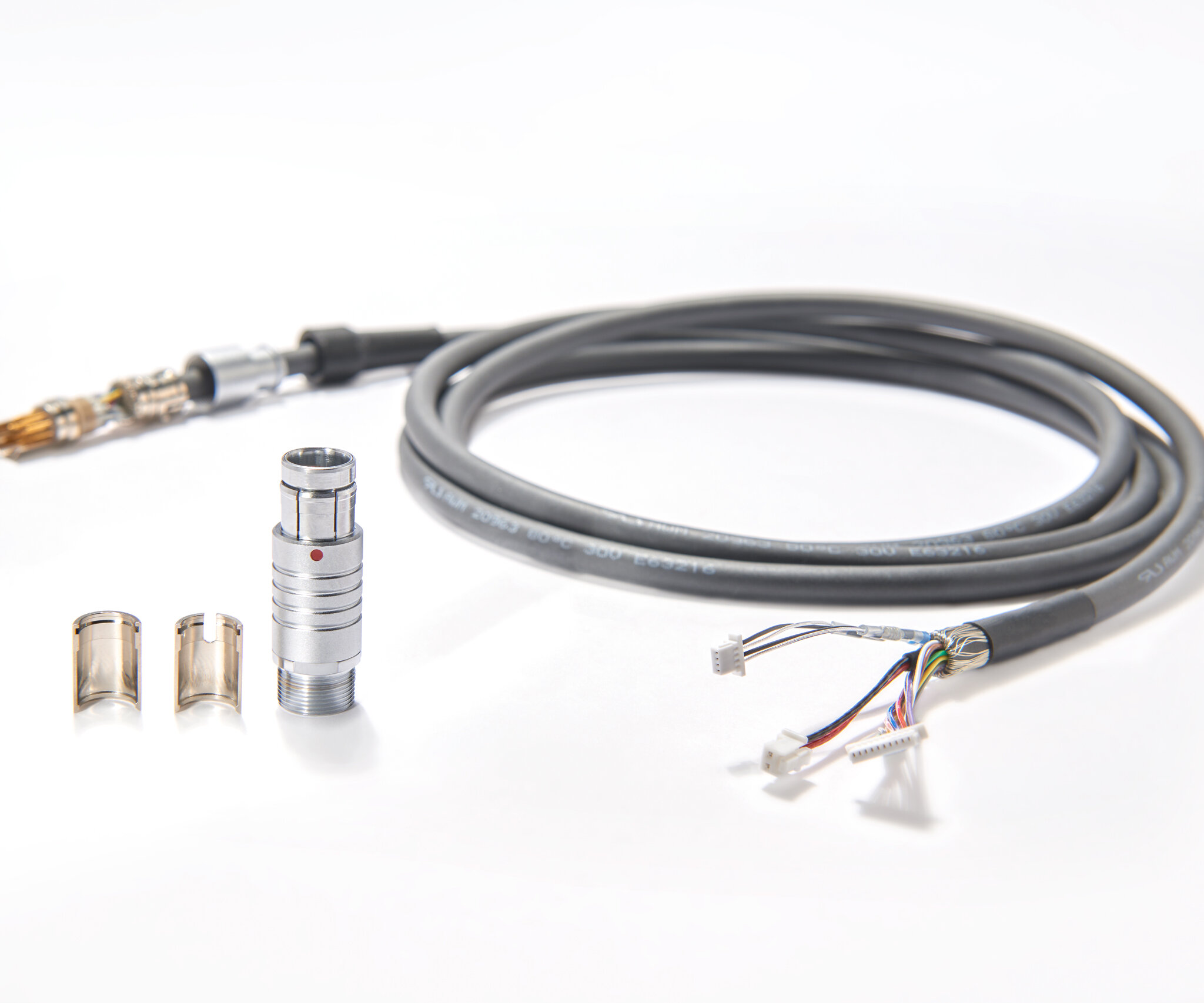

Hybrid cable with heat-shrink tubing: 2 coaxial lines, 13 signal lines, 2 supply lines, soldered to 19-pin push-pull connector

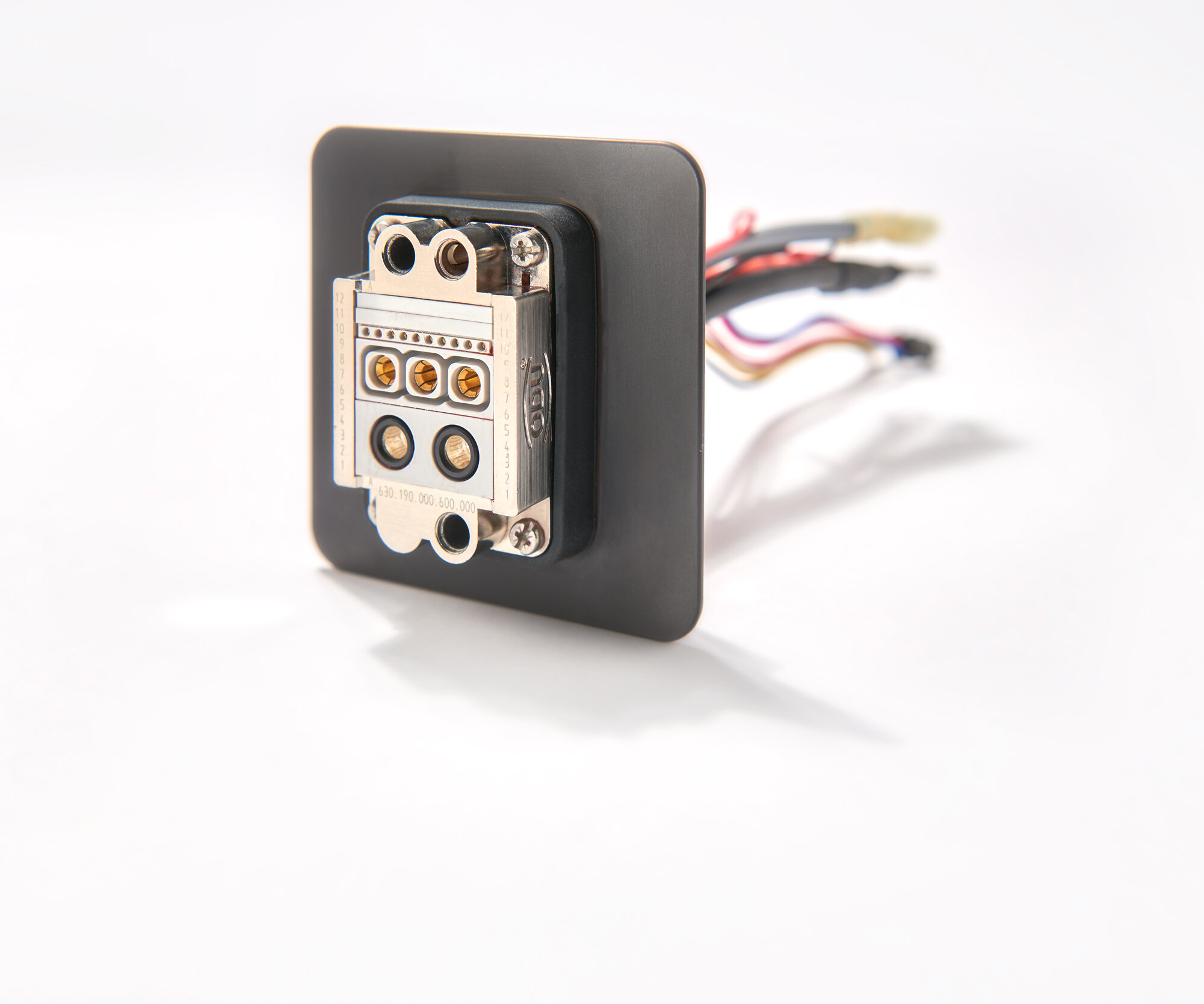

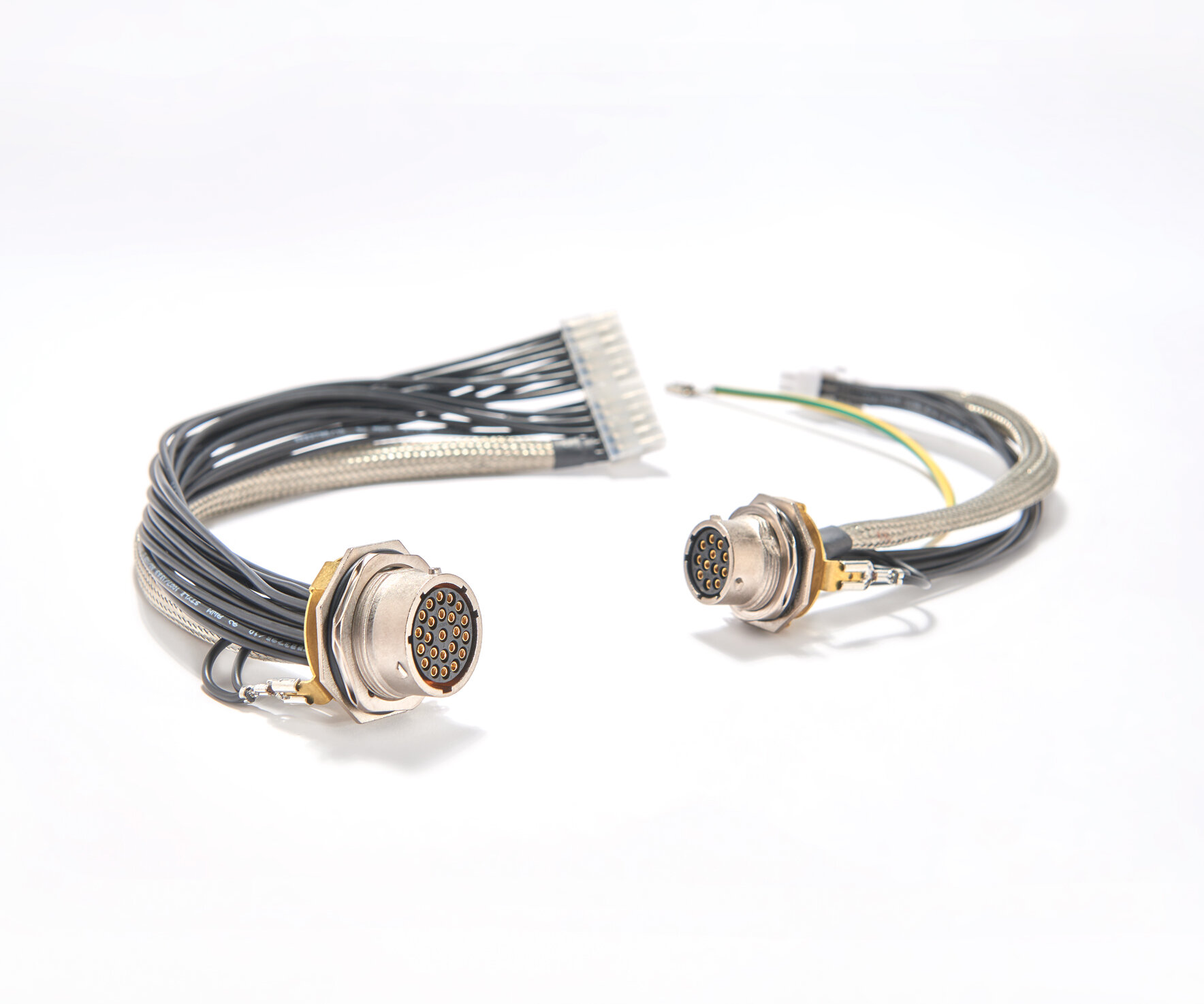

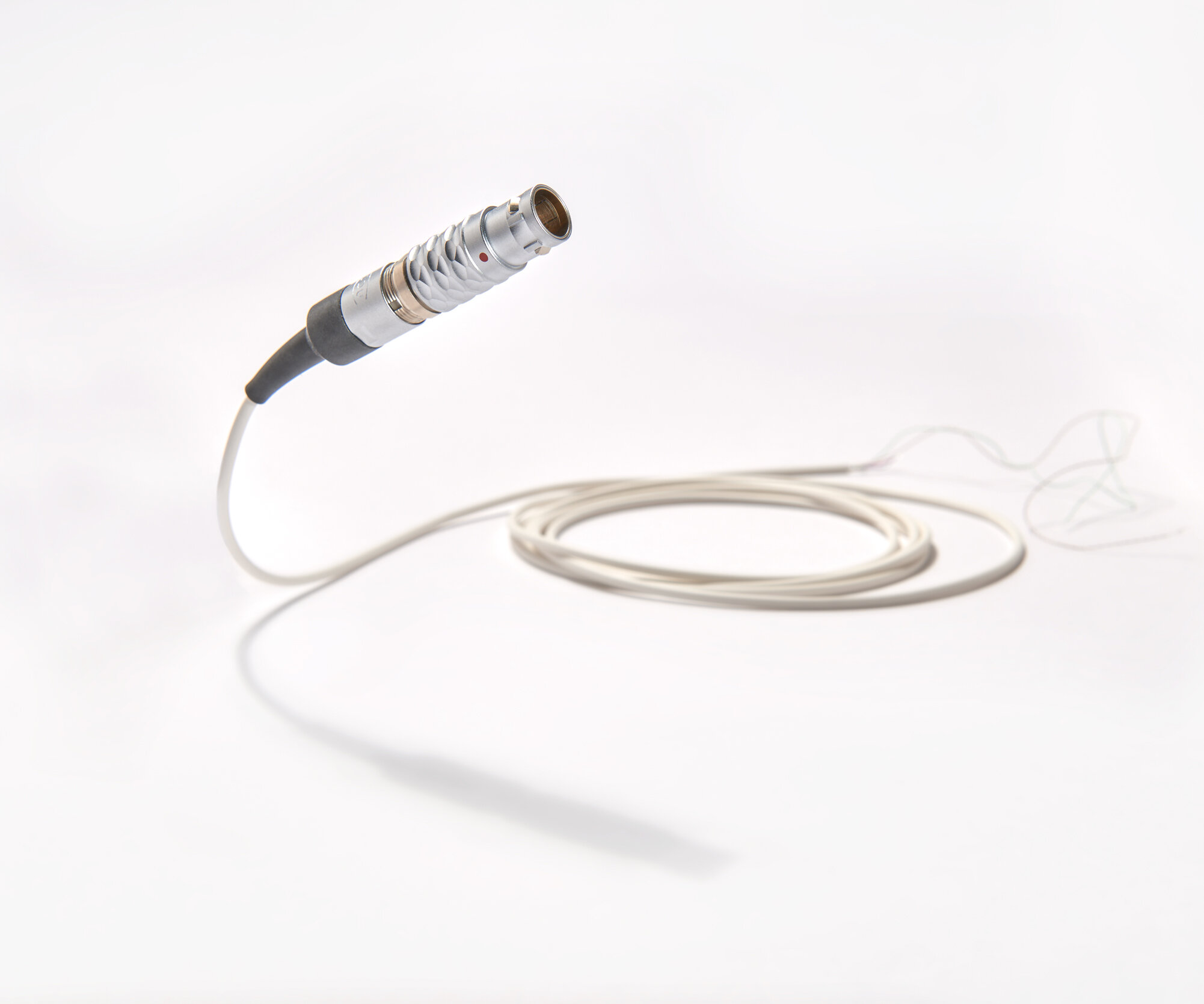

Female built-in connector with bayonet lock, assembled with individual stranded conductors for circuit board connection

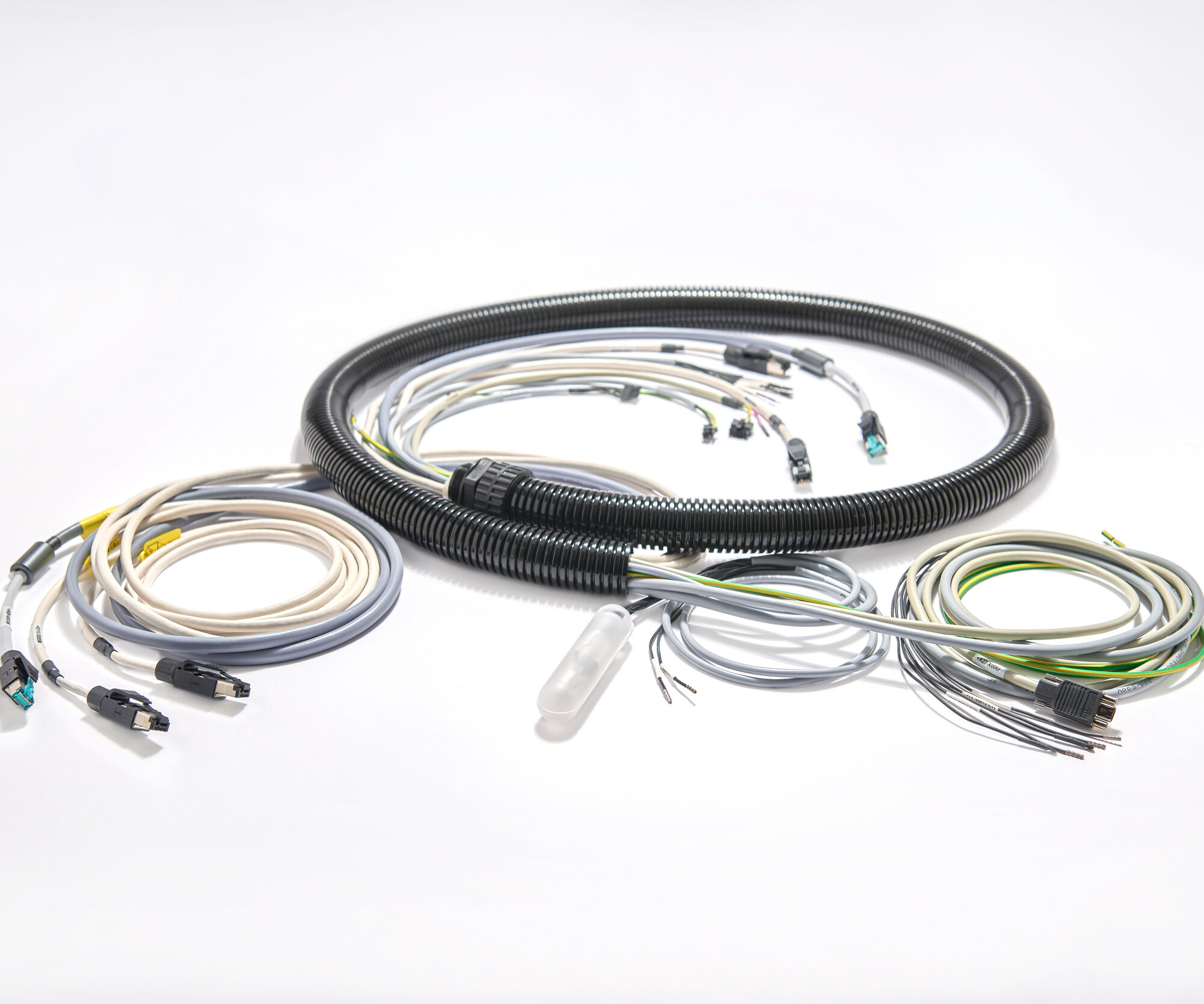

Complex cable harness for systems or mechanical engineering: featuring several different integrated round cables in protective tubing for use in harsh environments
Round cable on 19-pin push-pull connector with extremely small installation space requirements
We implement reliable insulation piercing connections based on a wealth of experience and expertise. For example, our lamination technology enables us to produce ribbon cables consisting of shielded round cables with individual stranded conductors with any configuration and a pitch 1.27 mm.
Round cable, laminated to form a ribbon cable for insulation piercing technology, with overmoulded elements for secure fixing while routing

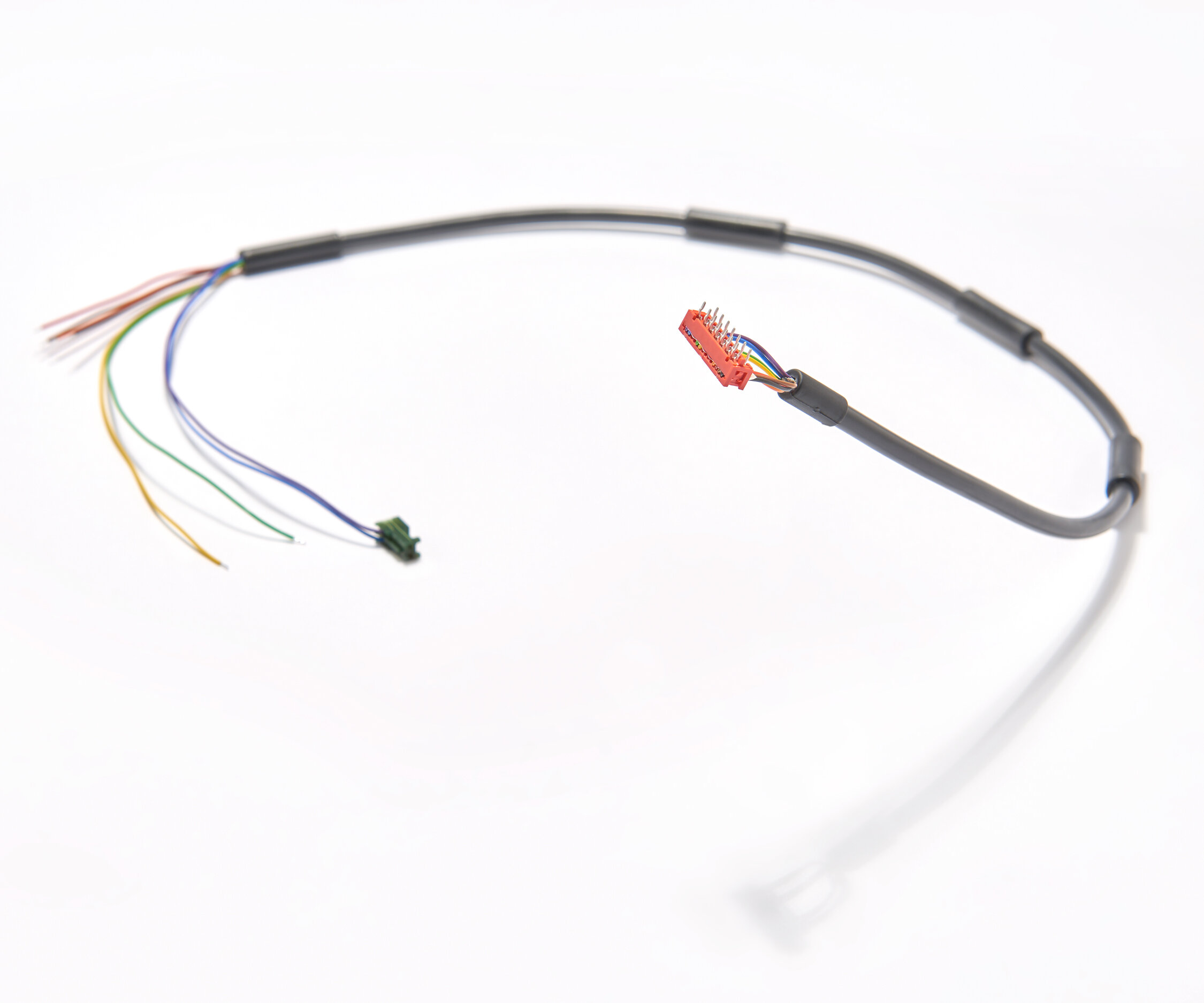

Round cable, laminated to form a ribbon cable, shielded connection between circuit board connectors
Our encapsulation technology is perfect for circuit boards, coils and connectors. It provides kink protection, strain relief and smooth cable penetration. We would be happy to advise you on the design and manufacture of suitable tools meeting your requirements.

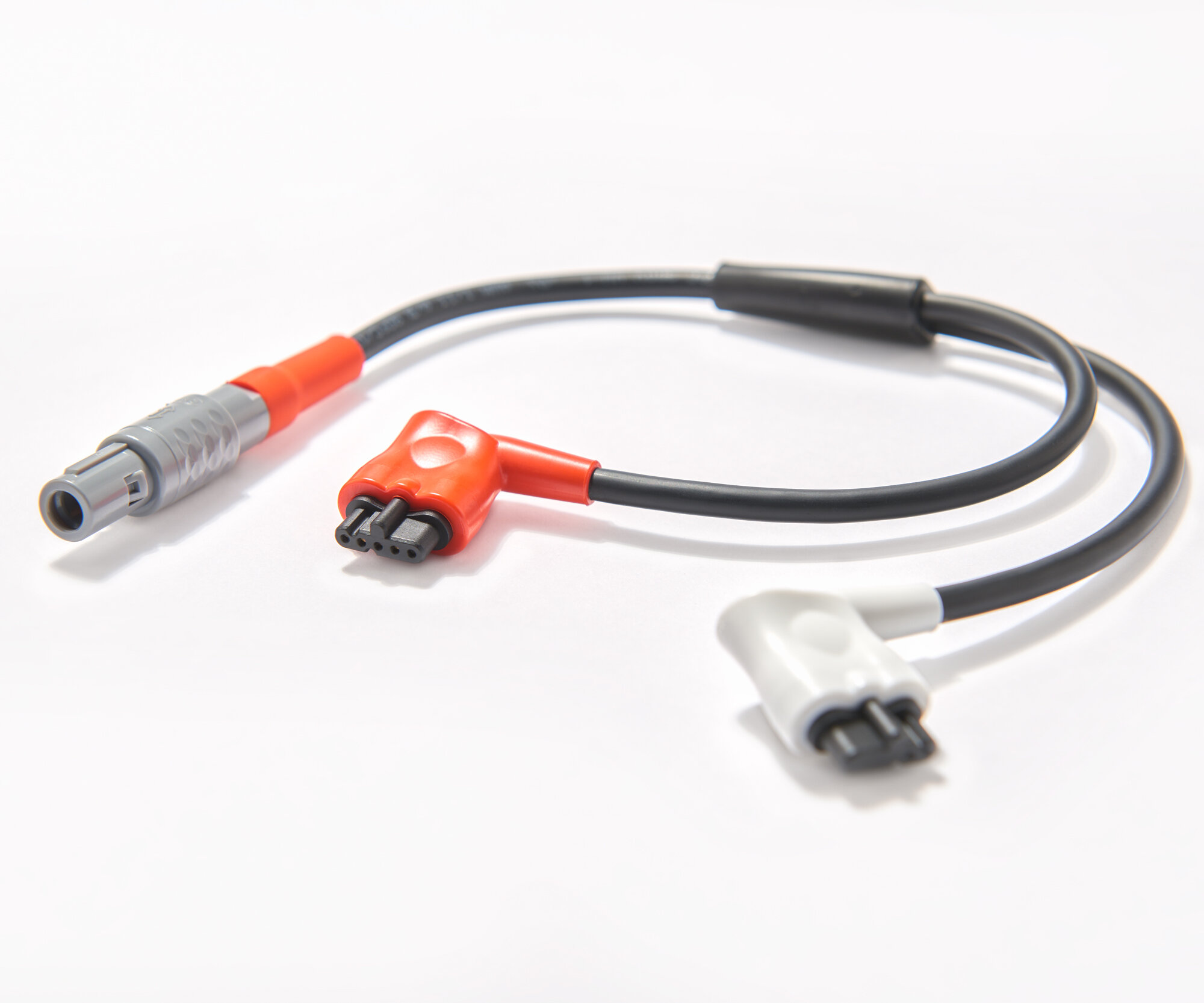

Connection cable for medical technology: push-pull connector with overmoulded anti-kink sleeve, encapsulated Y-distributor, customer-specific coloured and encapsulated connector, colour coding for safe handling

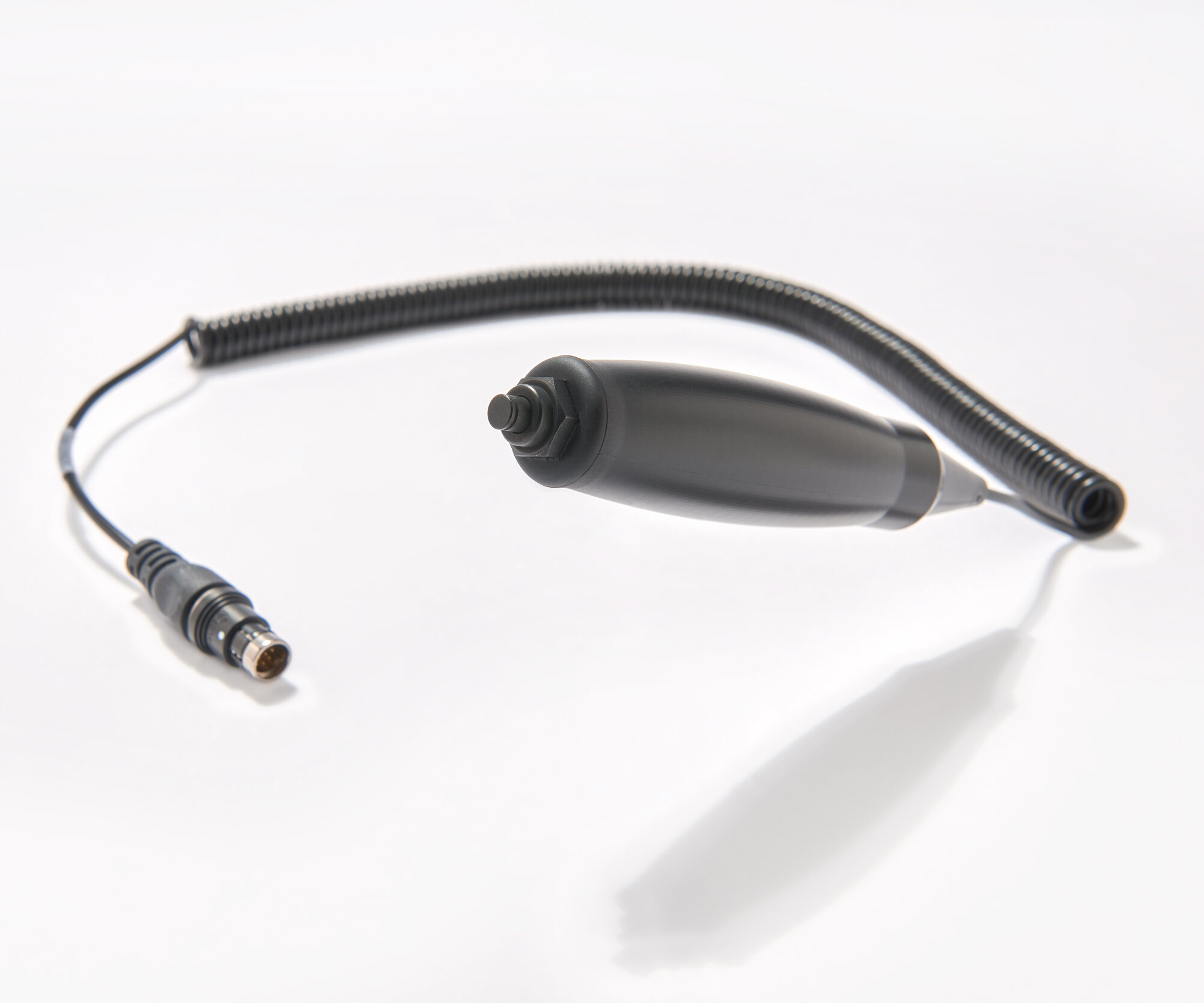

Coiled cable with ergonomic handle, integrated push-button and electronics, encapsulated using a hotmelt process

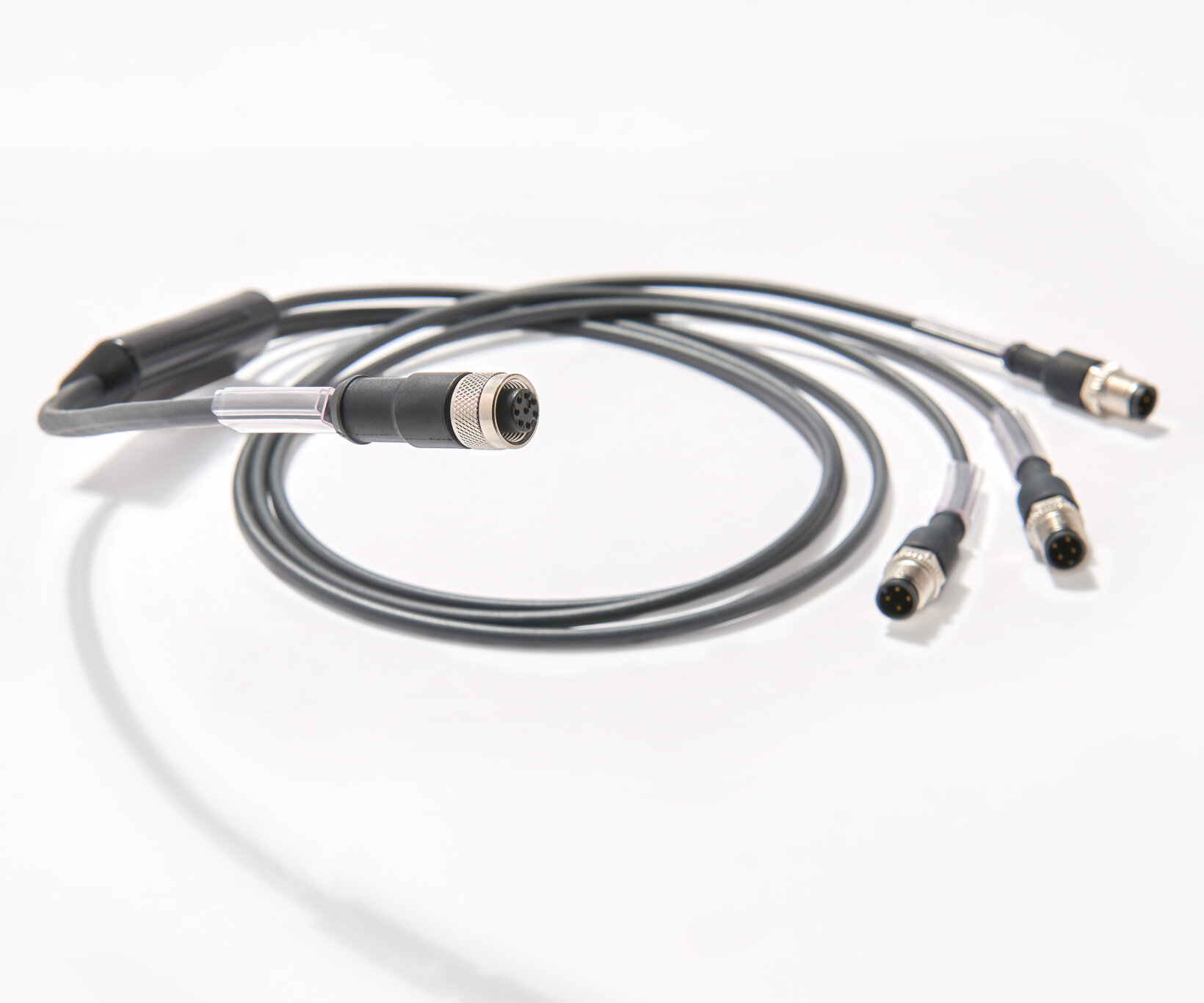

Connection distributor with M12 plug connector, integrated electronics, encapsulated using a hotmelt process

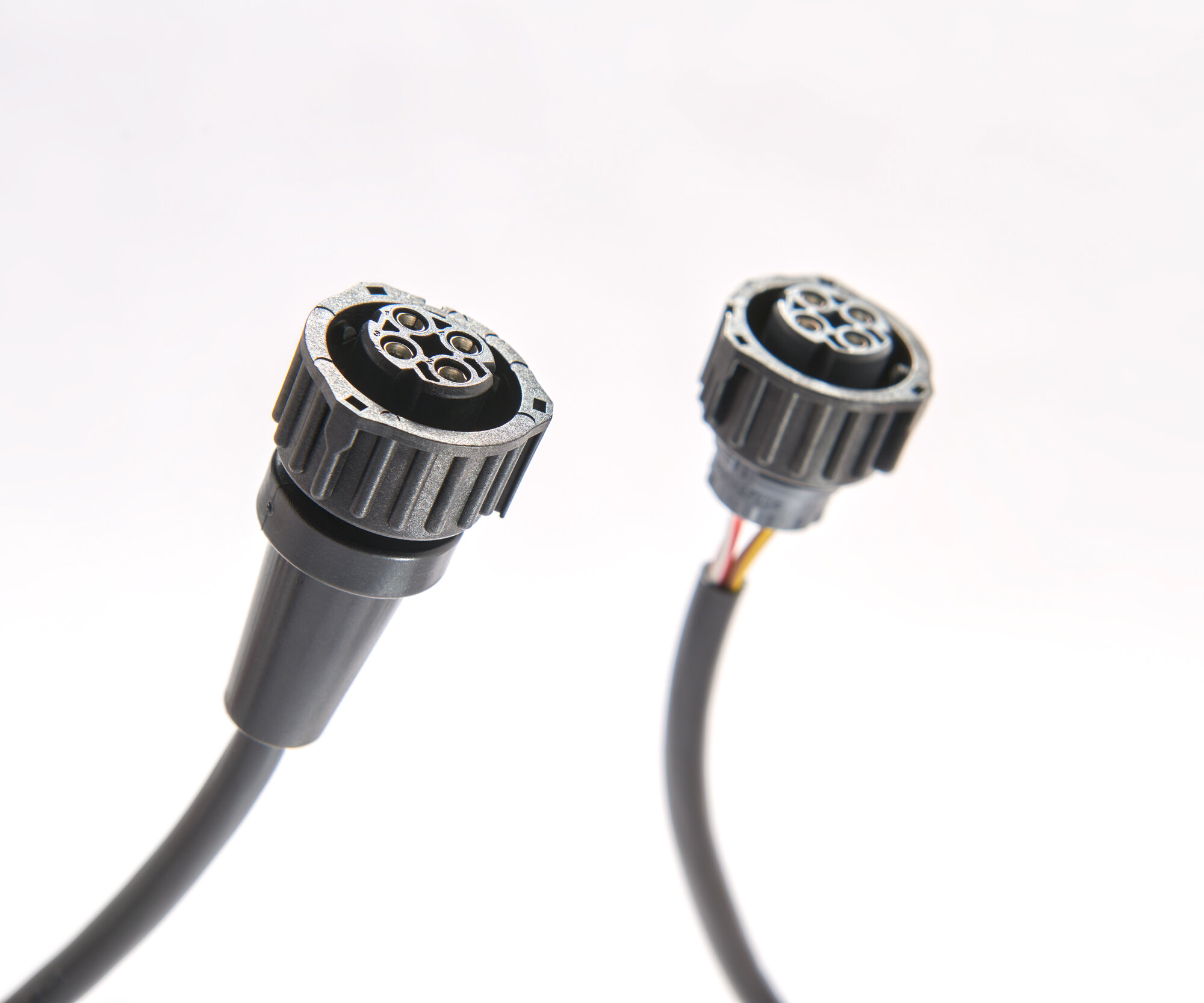

Round connector with bayonet screw fitting and encapsulated housing for tightness and superior strain relief

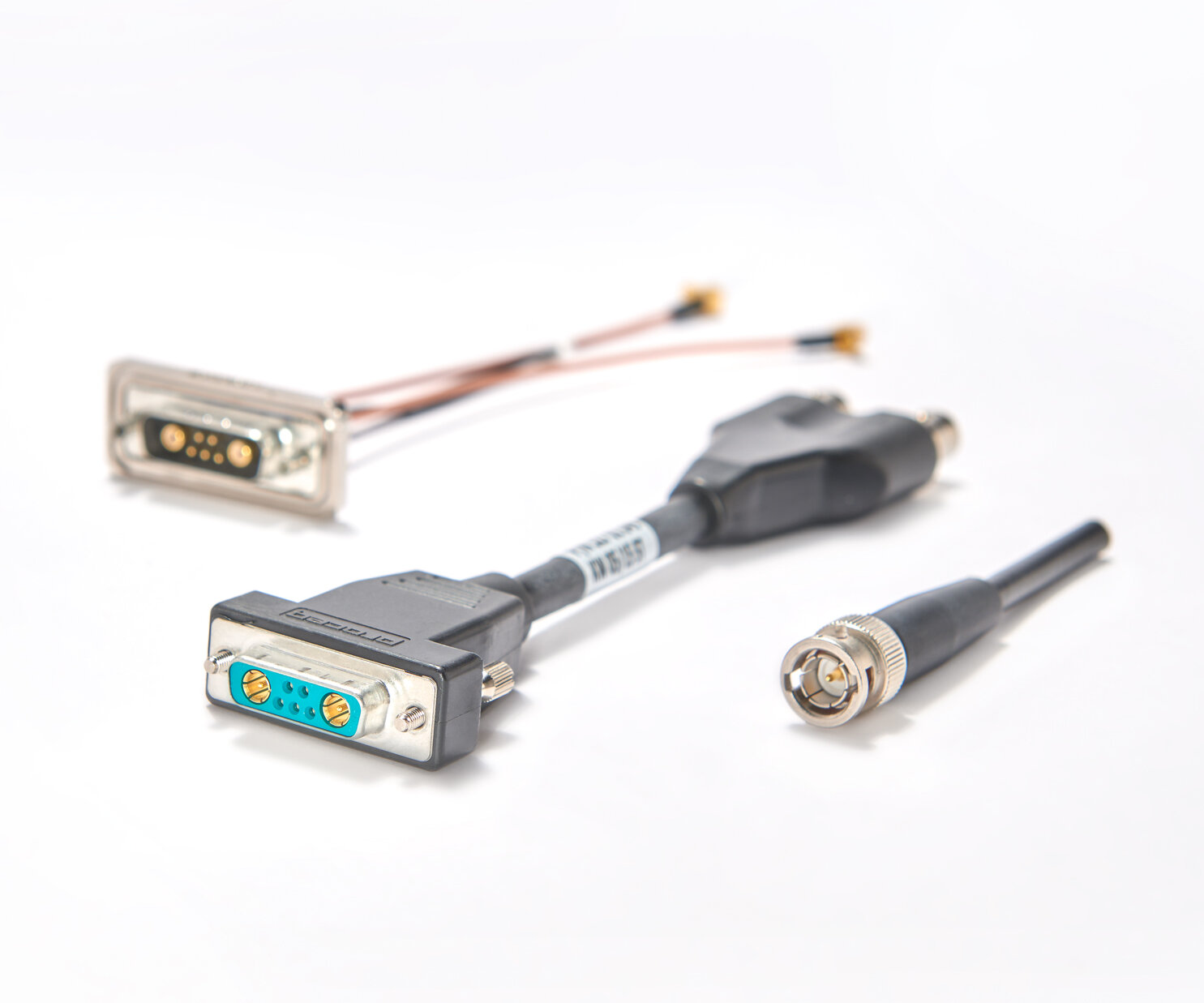

Complete three-part set for measurement technology: connection cable with BNC connector and overmoulded anti-kink sleeve, hermaphroditic connection adapter female Sub-D to two BMC connections, fully hotmelt encapsulated. Identification via barcode wrap-around label. Logo integrated in the encapsulation. Including ready-to-install device connection cabling, also with hermaphroditic Sub-D.
Motor connection circuit board, assembled on round cable and installed in the housing, with overmoulded strain relief

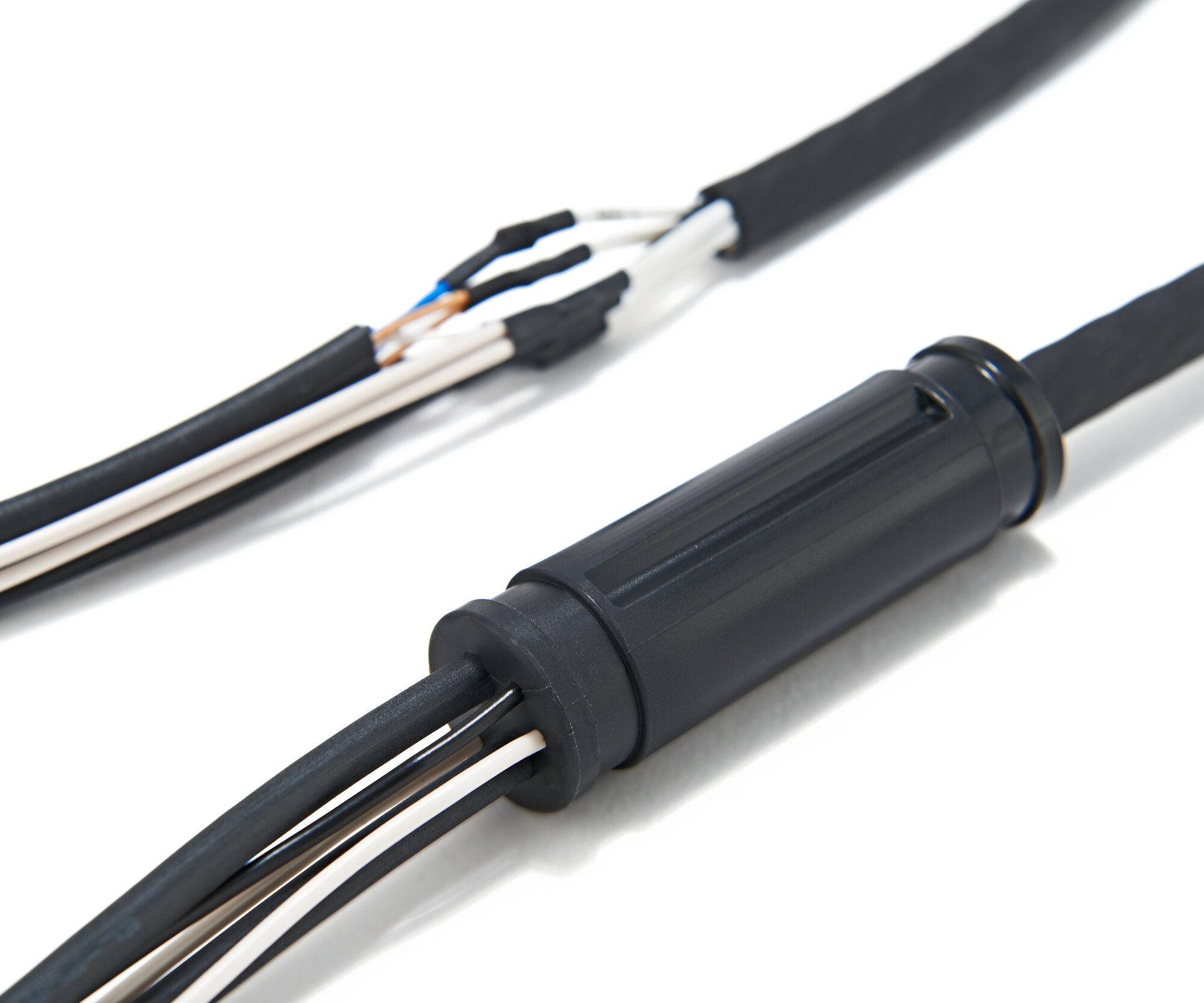

7-pole round cable with conductors spliced into multiple individual cores, encapsulated with hotmelt for superior strain relief
Quality appreciated around the world – from development and series launch to production and delivery. You can rely on Staiger. Hands down!
Our modern machinery enables us to accommodate your requirements with great flexibility. This puts us in a position to implement requirements quickly and in line with scheduling.
Our expertise in connectivity, assembly and encapsulation technology makes us the perfect manufacturing partner for assemblies and systems.
